GM/YM Series

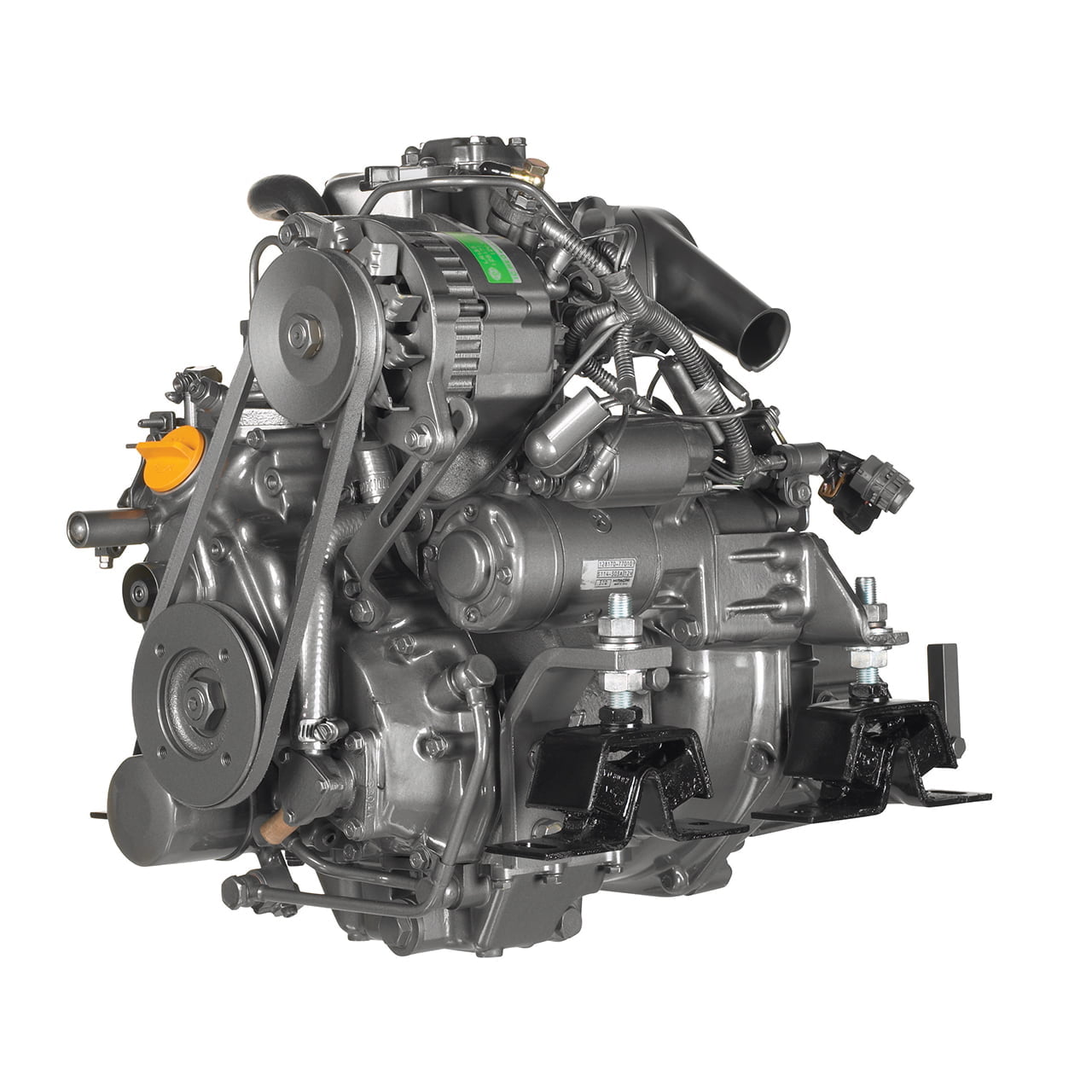

1GM10
Application: Sailing Engine
Power Output (HP): 9
Rated Speed: 3600 RPM
Displacement: 0.318L
Cylinders: 1
Bore x Stroke: 75mm x 72mm
Yachtsmen looking for extra power without extra size and weight can find it in Yanmar’s new 1GM10 diesel engine. Yanmar have up-powered their popular 1GM model by 20% to re-create its trusty performance at a higher 6.7kW, with negligible change in size, weight and shape.
Compatible with SD25 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

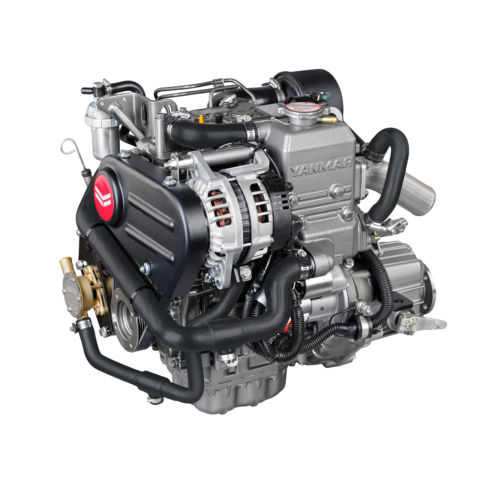

2YM15
Application: Sailing Engine
Power Output (HP): 14
Rated Speed: 3600 RPM
Displacement: 0.57L
Cylinders: 2
Bore x Stroke: 70mm x 74mm
The new 2YM15 is an additional model to what is recognized already as the most complete line up of marine engines in the business. With the added benefit of simplified maintenance due to the new location of the sea-water pump and all other service points being together near the engine front, these units no doubt are already on track to be recognized as the best-in-class auxiliary or primary power for sailboats and tough, reliable primary power for small motor craft.
Compatible with SD25 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

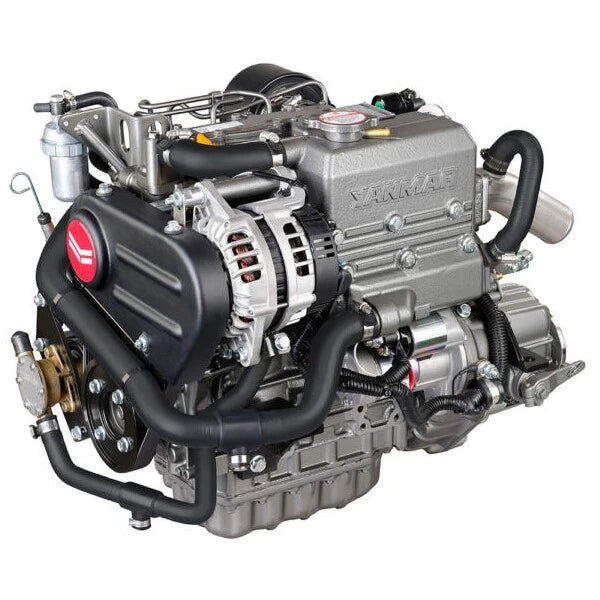

3YM20
Application: Sailing Engine
Power Output (HP): 21
Rated Speed: 3600 RPM
Displacement: 0.854L
Cylinders: 3
Bore x Stroke: 70mm x 74mm
The latest lightweight propulsion developments are the 2YM15, 3YM20 and 3YM30AE models. The 3YM20 and 3YM30AE were designed as a direct upgrade for the legendary 2GM20 and 3GM30E models they replace.
Compatible with SD25 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

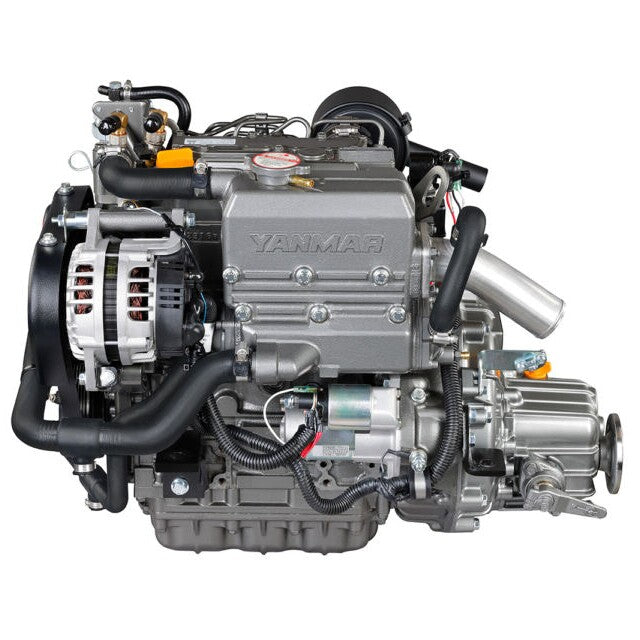

3YM30AE
Application: Sailing Engine
Power Output (HP): 29
Rated Speed: 3200 RPM
Displacement: 1.266L
Cylinders: 3
Bore x Stroke: 80mm x 84mm
The latest lightweight propulsion developments are the 2YM15, 3YM20 and 3YM30AE models. The 3YM20 and 3YM30AE were designed as a direct upgrade for the legendary 2GM20 and 3GM30E models they replace.
Compatible with SD25 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.
JH-CR Series
3JH40
Application: Sailing Engine
Power Output (HP): 40
Rated Speed: 3000 RPM
Displacement: 1.642L
Cylinders: 3
Bore x Stroke: 88mm x 93mm
The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.
Compatible with SD60 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.
4JH45
Application: Sailing Engine
Power Output (HP): 45
Rated Speed: 3000 RPM
Displacement: 2.19L
Cylinders: 4
Bore x Stroke: 88mm x 90mm
YANMAR’s 4JH45 & 4JH57 common rail diesel engines offer class leading features that out performs the competition. Compact, powerful, smooth, quiet, efficient and interconnective, the JH-CR Series is perfect for any application whether rib, tender, sailboat or catamaran, new or re-power. With over 100 years of innovation, unequalled reliability, and the largest marine engine global service network, choosing a YANMAR ensures you will enjoy many safe and carefree years on the water.
Compatible with SD60 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

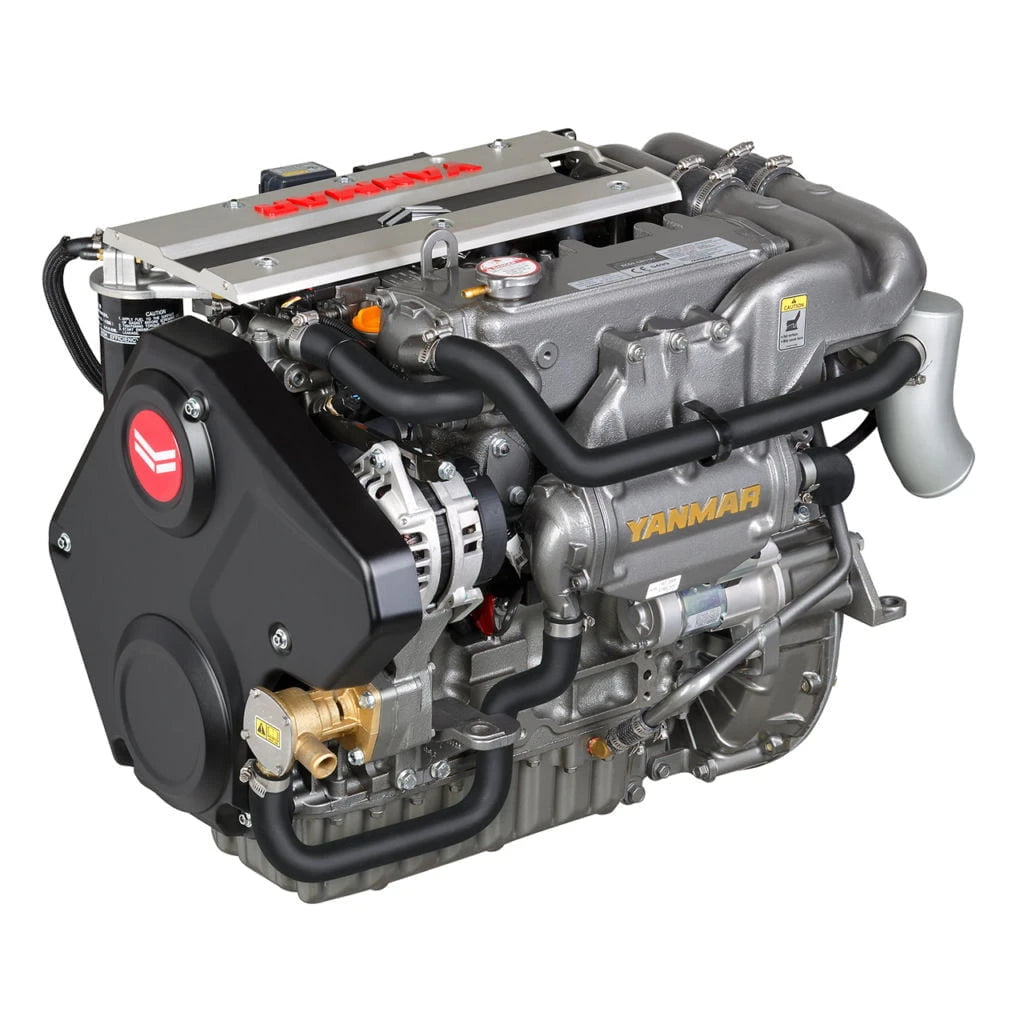

4JH57
Application: Sailing Engine
Power Output (HP): 57
Rated Speed: 3000 RPM
Displacement: 2.19L
Cylinders: 4
Bore x Stroke: 88mm x 90mm
YANMAR’s 4JH45 & 4JH57 common rail diesel engines offer class leading features that out performs the competition. Compact, powerful, smooth, quiet, efficient and interconnective, the JH-CR Series is perfect for any application whether rib, tender, sailboat or catamaran, new or re-power. With over 100 years of innovation, unequalled reliability, and the largest marine engine global service network, choosing a YANMAR ensures you will enjoy many safe and carefree years on the water.
Compatible with SD60 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.
4JH80
Application: Sailing Engine
Power Output (HP): 80
Rated Speed: 3200 RPM
Displacement: 2L
Cylinders: 4
Bore x Stroke: 84mm x 90mm
Utilizing the long-established TNV industrial YANMAR block as the durable foundation, the 4JH-CR marine series incorporates an advanced custom-built Bosch common rail fuel injection system, This brings the advantages of common rail technology to sailboats and smaller craft, exclusively from YANMAR for this horsepower range.
Compatible with SD60 Saildrive. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.
D1 Series

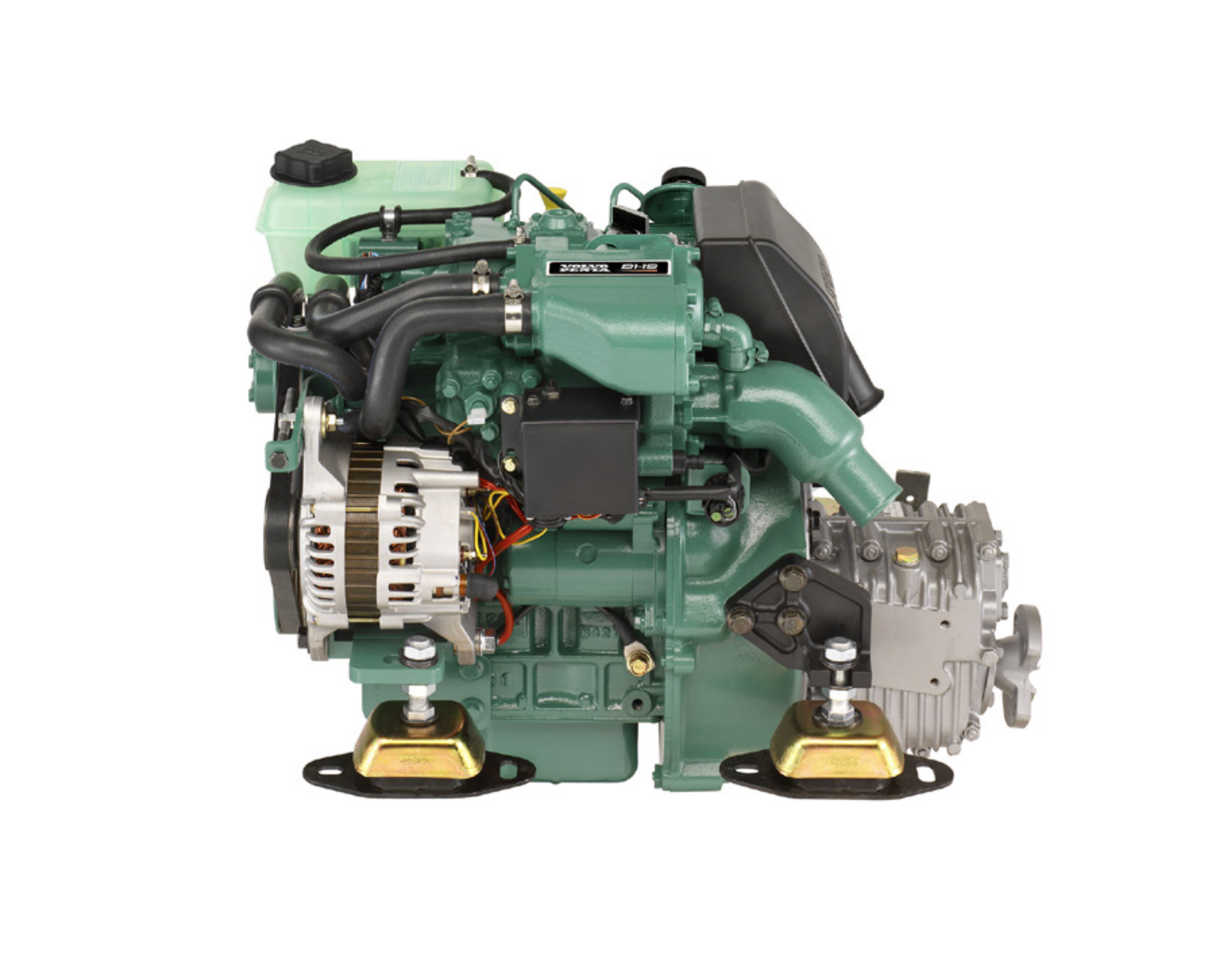

D1-13
Application: Sailing Engine
Power Output (HP): 13
Rated Speed: 2800-3200 RPM
Displacement: 0.51L
Cylinders: 2
Bore x Stroke: 67mm x 72mm
Compatible with 130S/130SR Saildrive or MS15A/MS15L Gear. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

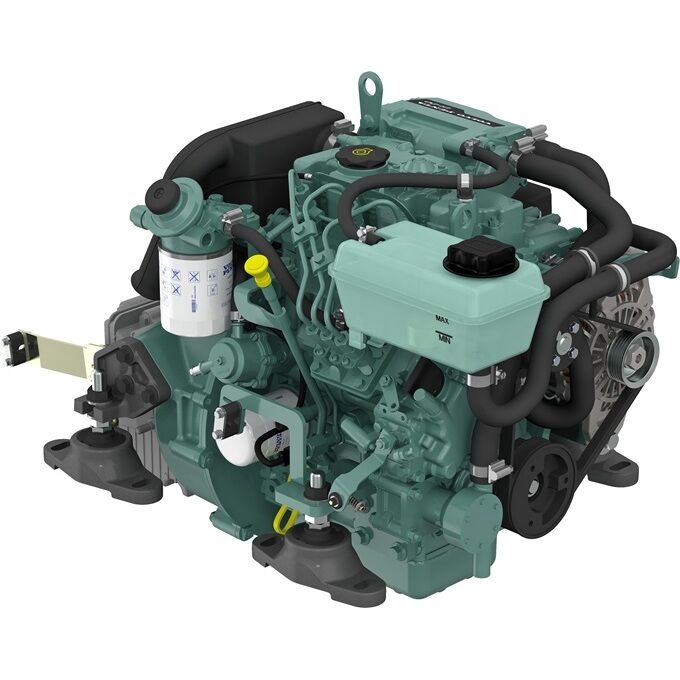

D1-20
Application: Sailing Engine
Power Output (HP): 20
Rated Speed: 2800-3200 RPM
Displacement: 0.76L
Cylinders: 3
Bore x Stroke: 67mm x 72mm
Compatible with 130S/130SR Saildrive or MS15A/MS15L Gear. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

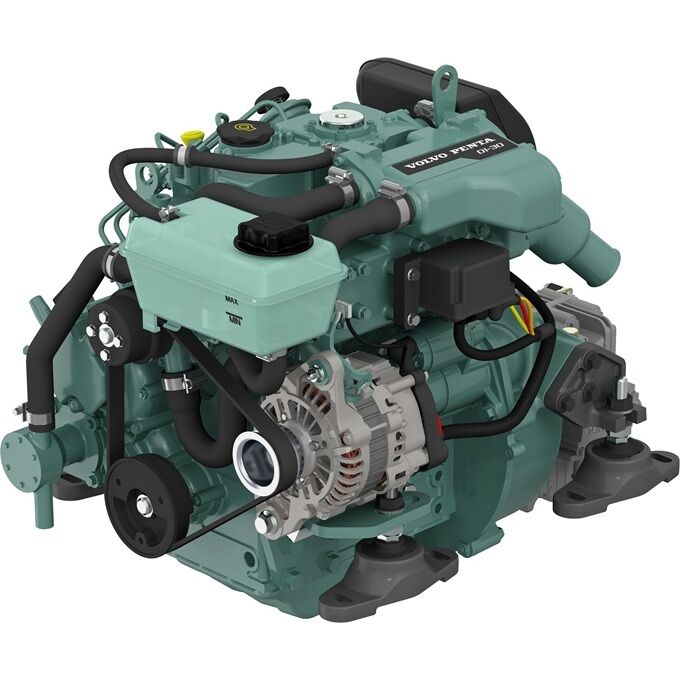

D1-30
Application: Sailing Engine
Power Output (HP): 30
Rated Speed: 2800-3200 RPM
Displacement: 1.13L
Cylinders: 3
Bore x Stroke: 77mm x 81mm
Compatible with 130S/130SR Saildrive or MS15A/MS15L Gear. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.
D2 Series

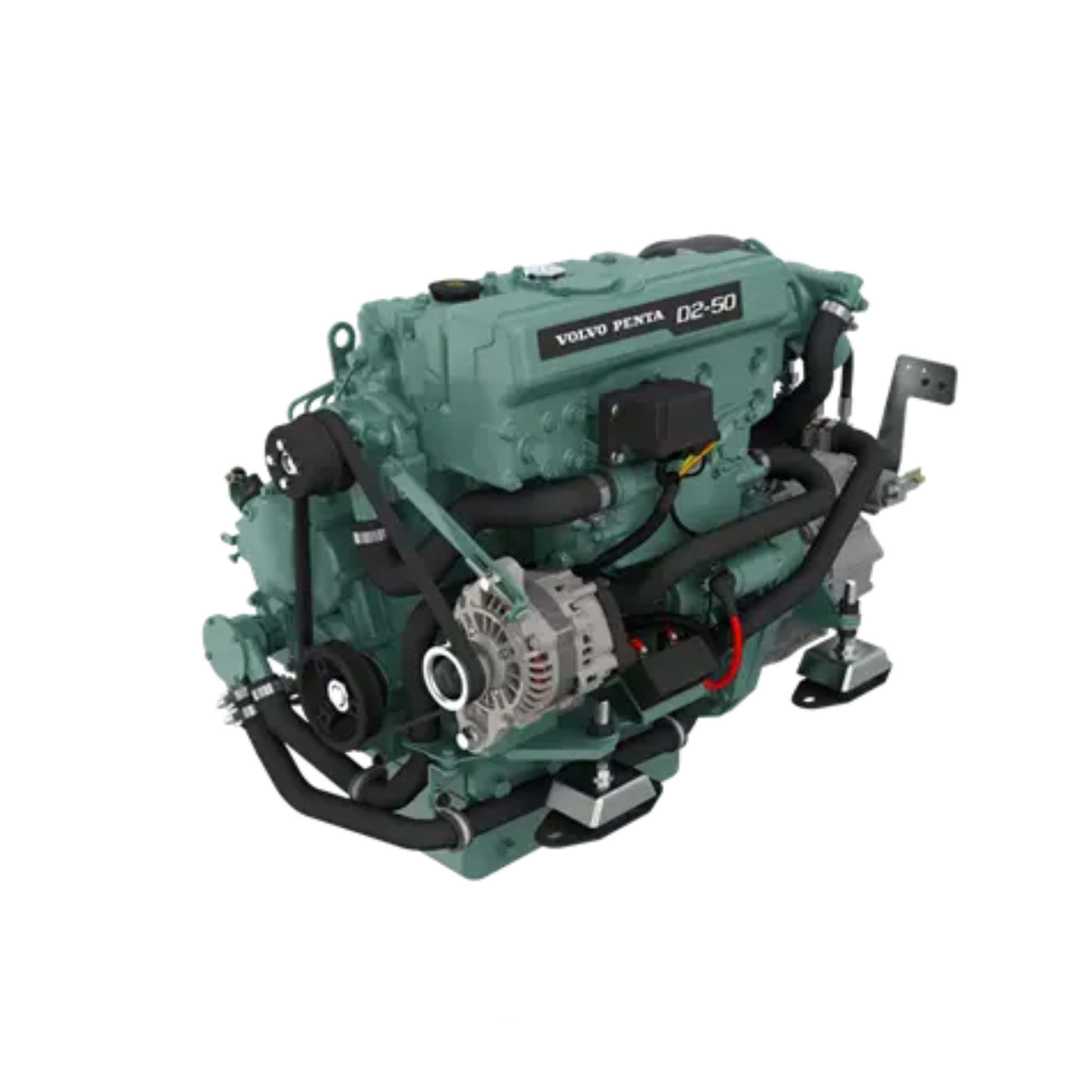

D2-50
Application: Sailing Engine
Power Output (HP): 50
Rated Speed: 2700-3000 RPM
Displacement: 2.2L
Cylinders: 4
Bore x Stroke: 84mm x 100mm
Compatible with 150S/150SR Saildrive or MS25A/MS25L/HS25A Gear. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

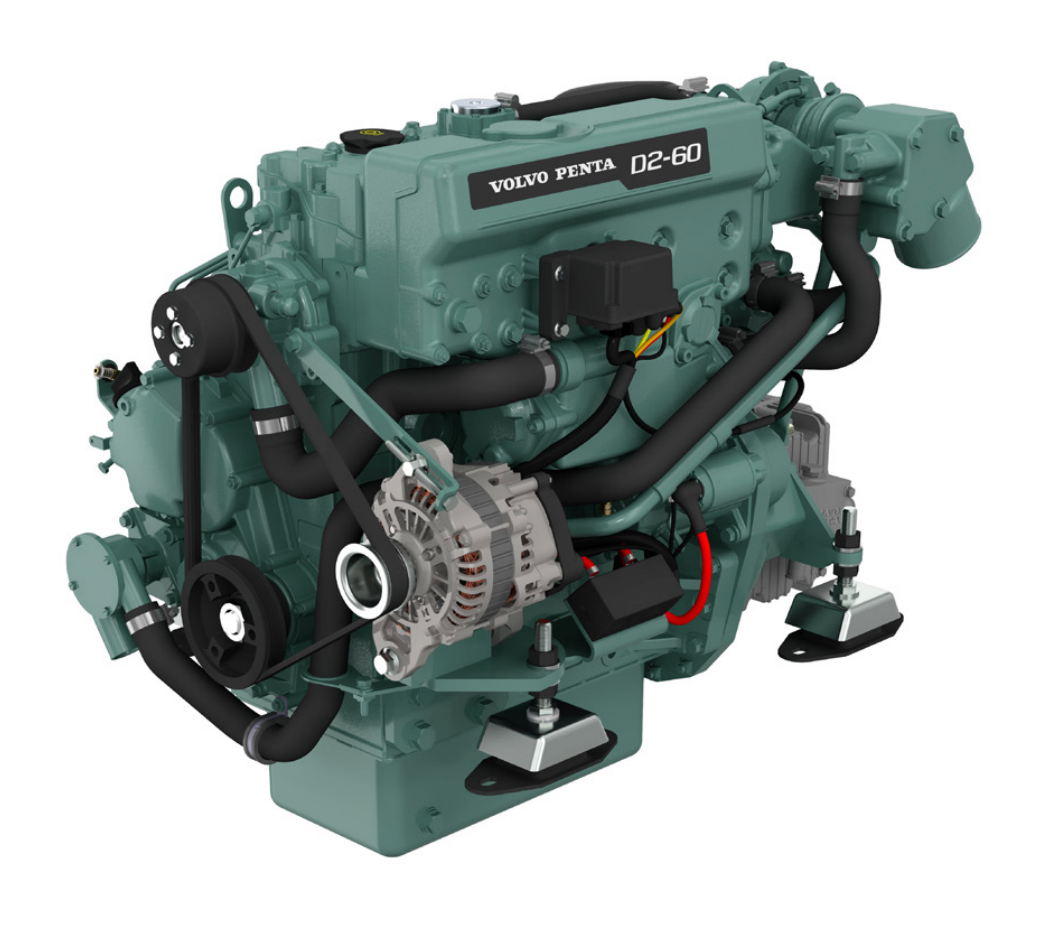

D2-60
Application: Sailing Engine
Power Output (HP): 60
Rated Speed: 2700-3000 RPM
Displacement: 2.2L
Cylinders: 4
Bore x Stroke: 84mm x 100mm
Compatible with 150S/150SR Saildrive or MS25A/MS25L/HS25A Gear. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.

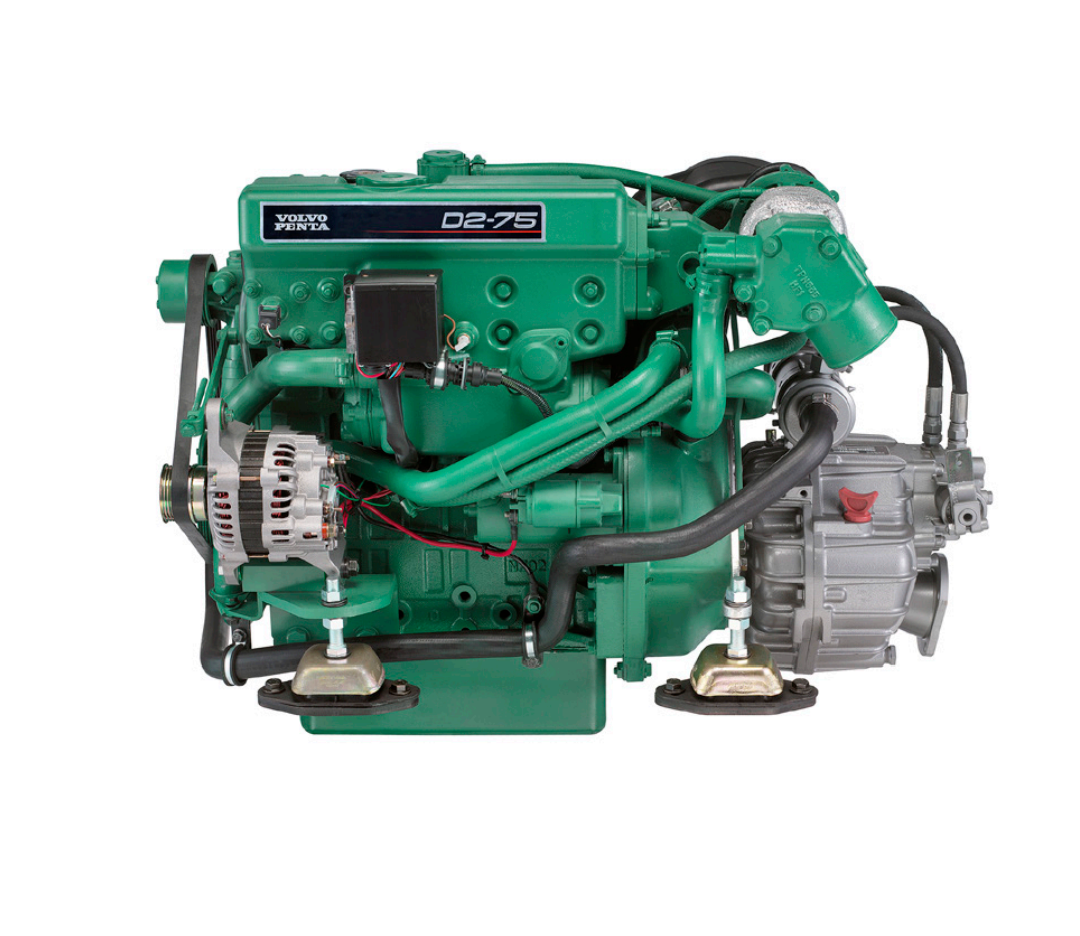

D2-75
Application: Sailing Engine
Power Output (HP): 75
Rated Speed: 2700-3000 RPM
Displacement: 2.2L
Cylinders: 4
Bore x Stroke: 84mm x 100mm
Compatible with 150S/150SR Saildrive or MS25A/MS25L/HS25A Gear. Please contact Douglas Marine for a full list of available options, installation requirements, pricing and availability.
